PERFORMANCE
• Max Speed: 15.5 mph / 25 kph
• Range: 25 miles / 40 km (can double to 50+ miles range with kick-assisted power)*
• Motor: 250W brushless hub motor

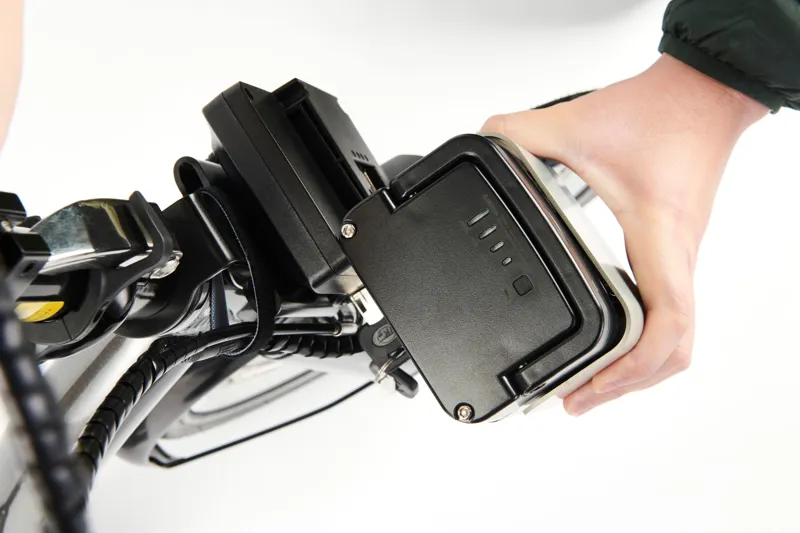

• Removable Battery: 36V 9Ah / 313Wh lithium-ion battery, lockable with key
• Battery size and weight: 175×120×76 mm, weight 1.94 kg
• Throttle: Grip twist
• Drive Type: Front Wheel
* dependent on terrain, weather conditions, rider weight, tyre pressure, rider fitness etc
SAFETY
• Brakes: Front Tektro V-brake with hand lever, rear aluminium pedal brake
• Lights: Front and rear
• Reflectors: Front, Rear and side (tyre wall)
• Bell: Yes

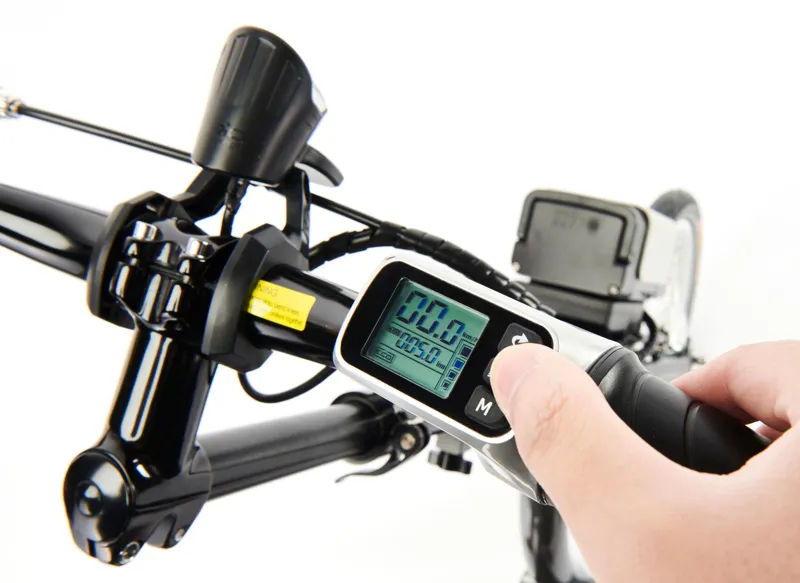

• Display: Backlit LCD screen, speedometer, odometer, battery level
• Age: 16 yrs +
• Helmet: Strongly advised (sold separately)
• Note for UK customers: It is illegal to ride this vehicle in public spaces (roads, cycle lanes, pavements). It must be ridden on private land with landowners permission. This law is currently in review (2020).
SPECIFICATIONS
• Lightweight: 13.7 kg / 30 lbs
• Max Load: 150 kg (330 lbs)
• Min Rider Height: 152 cm (5’0″)
• Max Rider Height: 186 cm (6’1″)
• Folding Frame: Heat treated T6 aluminium 6061
• Front Fork: Steel, 15 mm offset
• Rear Fork: Aluminium alloy
• Wheels: Double-wall 16″ (305 mm) spoked rims
• Tyres: 1.5″×16″ (305) GMD tyres, street tread with reflective strip
• Tyre Pressure: Max 100 psi (6.9 bar), standard Schrader valve, pump required
• Headset: Integrated
• Grips: Black, rubber, shaped for comfort.
• Mudguards: Black or Silver, steel
DIMENSIONS
• Adjustable Handlebar Height: 905 mm (35.6″) - 1005 mm (39.6″)
• Handlebar Height with flipped stem: 935 mm (36.8”) - 1035mm (40.8″)
• Unfolded Size: L 1370 mm (54″), handlebar Width 555 mm (21.9″)

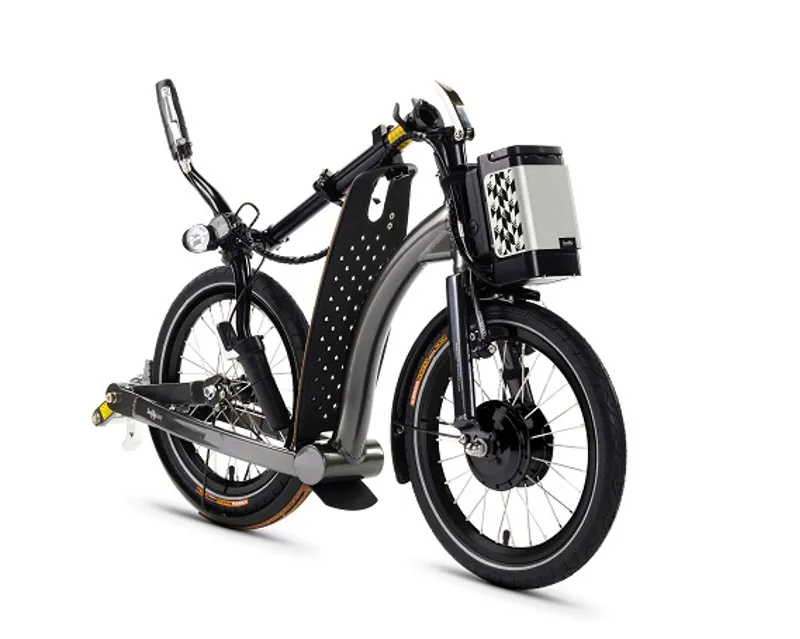

• Folded Size: L 1065 mm (42″), W 160 mm (6.3″), H 660 mm (26″)
• Ground clearance: 65 mm (2.6″)
• Deck Height: 110 mm (4.3″)
• Deck Width: 160 mm (6.3″)
• Deck Length: 440 mm (17.3″)
• Wheelbase: 990 mm (39″)
• Box Size: L 1160 mm (45.7″), W 200 mm (7.8″), H 710 mm (27.9″)
• Gross Weight: 17.2 kg (37.9 lbs)
