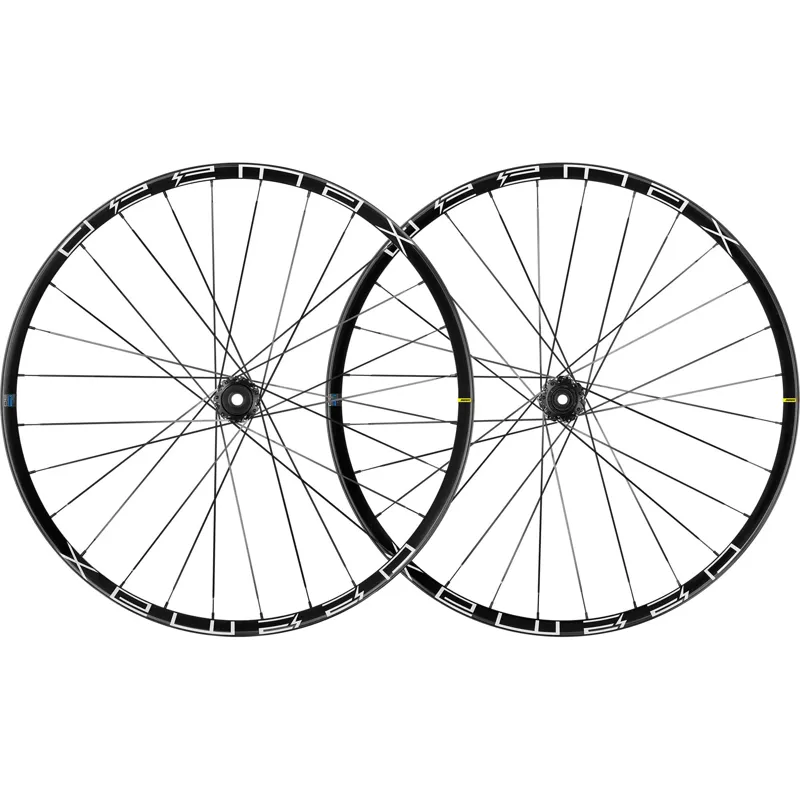

Mavic E-Deemax 30 29 6 Bolt Disc Black

A 30mm e-bike specific rim thatâs super strong, tubeless ready and with pfp technology. The rim is welded and laced with 28 double butted spokes on downhill inspired hubs. All the e-deemax reliability and toughness within reach.

**strong and durable**

* welded rim with pinch flat protection for :
* less risk of flat
* a super strong rim profile
* a perfectly sealed rim profile

**e-bike specific and reliable construction**

* 28 wide double butted spokes
* super reliable id360 double ratchet freewheel system
* hubs inspired by downhill practises

**tubeless ready technology**

* a tubeless rim profile with tubeless tape make it easy to ride tubeless tyres for more traction and less risk of flat

**weight: 2160g**

**understanding the different mavic freehub body acronyms:**

* hg or m11 â Shimano hg road 11/12x (other speeds with spacer)
* ms - Shimano microspline
* xd - SRAM xd
* xd-r - SRAM xd-r
* ed11 - campagnolo 9/12x
* n3w - campagnolo 13x
___

**additional information**

the name e-deemax has become a reference for e-bike riders, this new e-deemax 30 lives up to its name with many of the same features and technologies as higher range model, but at a far more attainable price. One of the key factors is our pinch flat protection technology, a rim design with a wider contact surface at the top of sidewall, which significantly reduces the risk of tyre cuts and punctures. The rim is welded for added reliability and features a 30mm internal width with a tubeless ready compatibility to allow you to run lower tyre pressure for better traction and control.

As all our e-deemax wheelsets, this new option is lab and field validated for a max total weight of 180kg.

Our instant drive 360 freewheel with a double ratchet system equips the rear hub and provide fast engagement and top-level reliability.

The rear hub is compatible with Shimano hg9, micro spline and SRAM xd driver bodies. The e-deemax 30 is available with 6-bolt or center lock brake rotors in 29â only and is compatible with a 15x110 front axle and 12x148 rear. The wheel is delivered with valves, replacement spokes and accessories.

**maxtal aluminium alloy**

exclusive to mavic. This specific aluminium alloy offers a higher strength to weight ratio than tradition 6106 alloy

**instant drive 360 technology**

super light and efficient. The large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.

**ust tubeless technology**

traction and control. Universal standard for tubeless. Ready to ride tubeless system. The ust concept improves traction, control and comfort whilst reducing inertia and flats.

**sup welding technology**

soude usine process, stronger and smoother joint. After bending, the rim joint is arc welded. The welded seam is then milled for a smooth finish.

**qrm auto bearing preload technology**

qualite de roulements mavic auto. Cartridge bearings double sealed with e3 internal clearance. Preload is automatically adjusted to guarantee a perfect spin with no play on the long run.

**technical specifications:**

* profile depth: 22mm
* inner width: 30mm
* rear axle: 12x148mm
* discipline: downhill
* spokes: straight pull, flat.
* rim diameter: 29"
* nipples: steel abs black
* rim material: maxtal
* tyre compatibility: ust tubeless ready use with mavic tubeless tape
* maximum weight: 180kg including bike
* braking system: 6 bolt only
* bearings: qrm automatic setting sealed cartridge
* etrto size: 622x30tc
* weight: 2160g

**what's in the box?**

* wheelset
* speed sensor magnet with the rear wheel
* multifunction adjustment wrench with the rear wheel
* rim tape mounted on wheek
* ust tape mounted on wheel
* 2 replacement spokes for each wheel
* front axle adapter: 20x110 convertible to 15x110

**intended use**

* minimum tyre size: width 52mm - pressure max. 2.95bar/43psi
* maximum tyre size: width 76mm - pressure max. 2.45bar/36psi
* astm category 5 : gravity riding focused on the descent
