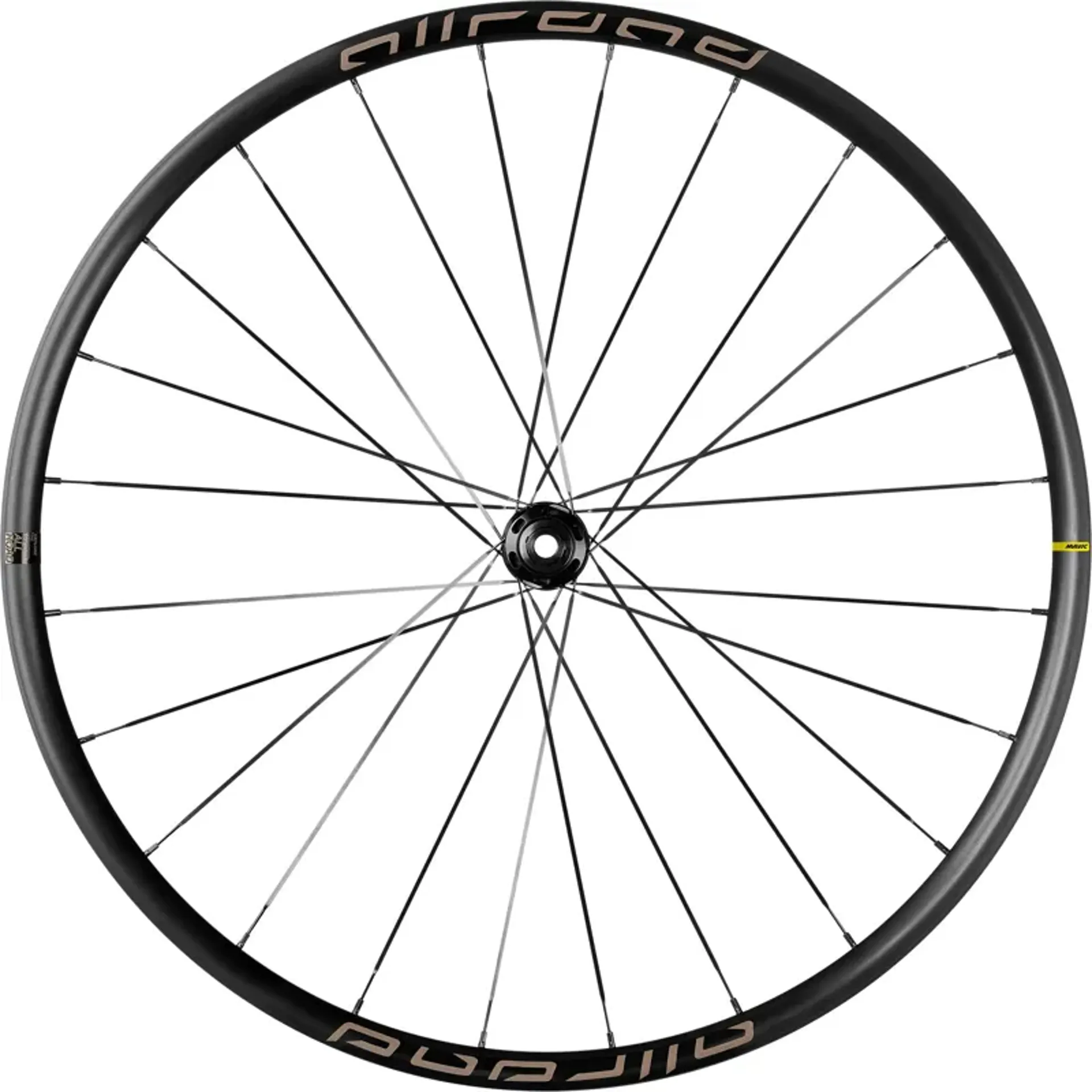

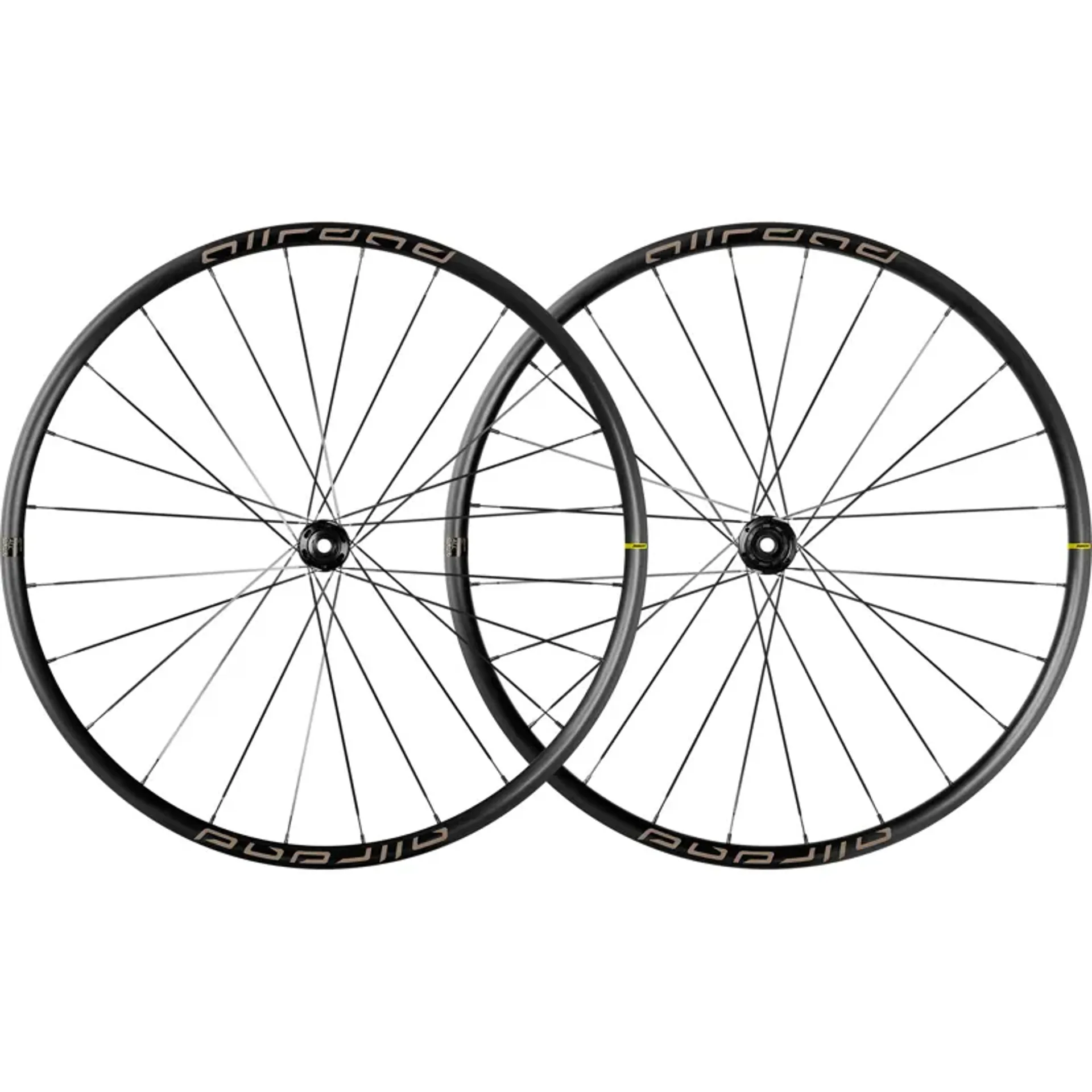

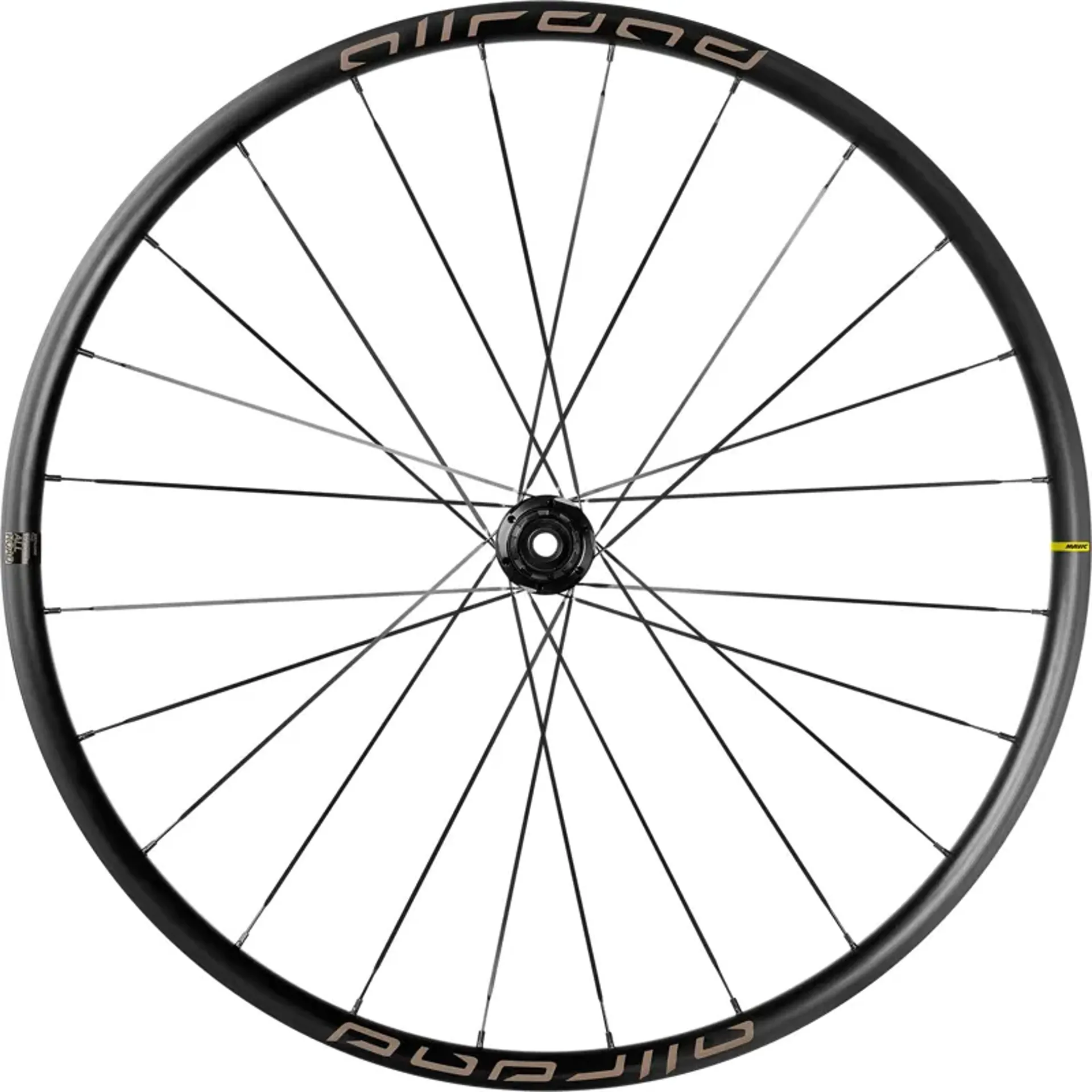

Allroad Disc 650b Black

With a 25mm wide rim profile in a 650b diameter, this ust road tubeless wheel system is built for adventure on the roughest terrain, giving you the confidence you need to tackle rugged, adventurous paths with full control.

**purpose-built for riding rough roads, gravel or dirt**

* 25mm wide rim takes tyres up to 64mm
* ust road tubeless technology improves comfort and rolling resistance, and reduces the risk of punctures
* 650b diameter keeps the wheel agile

**proven performance and reliability at an attainable cost**

* infinity hub platform optimizes spoke tension and wheel stability
* instant drive 360 freewheel engages quickly and automatic bearing preload keeps free spinning through time and abuse
* straight-pull round spokes, which are stronger than j-bend spokes

**rolling efficiency and nimble ride quality**

* sleeved rim minimizes weight
* consistent and stable spoke lacing
* low-friction hub internals

**weight: 1840g**

**understanding the different mavic freehub body acronyms:**

* hg or m11 - Shimano hg road 11/12x (other speeds with spacer)
* ms - Shimano microspline
* xd - SRAM xd
* xd-r - SRAM xd-r
* ed11 - campagnolo 9/12x
* n3w - campagnolo 13x

___

**additional information**

perfect for riding on rough roads, gravel or dirt, it gives you the smooth-riding performance of tubeless tyres and makes it easy to set them up without any hassles. Low rolling resistance and a reduced risk of punctures add up to a better overall riding experience, especially on rugged terrain.

The wheels are engineered for the unique demands of disc brakes, built up with 24 straight-pull spokes, which are stronger than j-bend spokes. So wherever the road goes, and however rough it gets, you're ready to keep things rolling.

**instant drive 360 technology**

super light and efficient. The large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.

**ust tubeless technology**

traction and control. Universal standard for tubeless. Ready to ride tubeless system. The ust concept improves traction, control and comfort whilst reducing inertia and flats.

**infinity hub design**

an ultra reliable, high performance hub. Efficient power transfer thanks to the optimised non-contact spoke lacing and tension distribution. The length of the spokes are identical on the front and rear. Maintenance is easy thanks to a tool free solution.

**qrm auto bearing preload technology**

qualite de roulements mavic auto. Cartridge bearings double sealed with e3 internal clearance. Preload is automatically adjusted to guarantee a perfect spin with no play on the long run.

**technical specifications:**

* profile depth: 21mm
* inner width: 25mm
* front axle: 12x100mm
* rear axle: 12x142mm
* discipline: gravel
* spokes: steel, straight, flat
* rim diameter: 650b
* nipples: steel abs black
* rim material: s6000 aluminium
* tyre compatibility: ust tubeless ready
* maximum weight: 120kg including bike
* braking system: centre lock disc only
* bearings: qrm automatic setting sealed cartridge
* etrto size: 584x25tss
* weight: 1840g

**what's in the box?**

* wheelset
* user guide
* ust valve not mounted on the wheel
* multifunction adjustment wrench

**intended use**

* minimum tyre size: width 23mm - pressure max. 6.75bar/97psi
* maximum tyre size: width 62mm - pressure max. 3.8bar/55psi
* astm category 2 : road and offroad with jumps less than 15cm
